Which Holographic Sight Is Right for You?

When comparing the EOTech EXPS3 and the EOTech XPS2, you’re looking at two of the most popular holographic weapon sights ever built by EOTECH. Both deliver lightning-fast target acquisition, rugged durability, and the signature holographic reticle shooters trust. But while they look similar at first glance, the differences between them can significantly impact your setup.

Whether you're building a duty rifle, something for home defense, something suited for close quarters, or competition-ready AR-15, this guide from out team at Defense Distributors will break down the specs, features, and ideal use cases for both optics so you can make the right call.

Overview: EXPS3 vs XPS2 at a Glance

Both models use EOTECH’s holographic technology, offering:

• True two-eyes-open shooting
• Minimal parallax
• Fast 68 MOA ring with 1 MOA center dot reticle (depending on model variant)
• 0.5 MOA windage and elevation adjustments
• CR123 battery power source
• Durable aluminum hood construction

The main differences come down to:

• Night vision compatibility
• Mounting system and height
• Water resistance
• Weight
• Intended application

Let’s break it down.

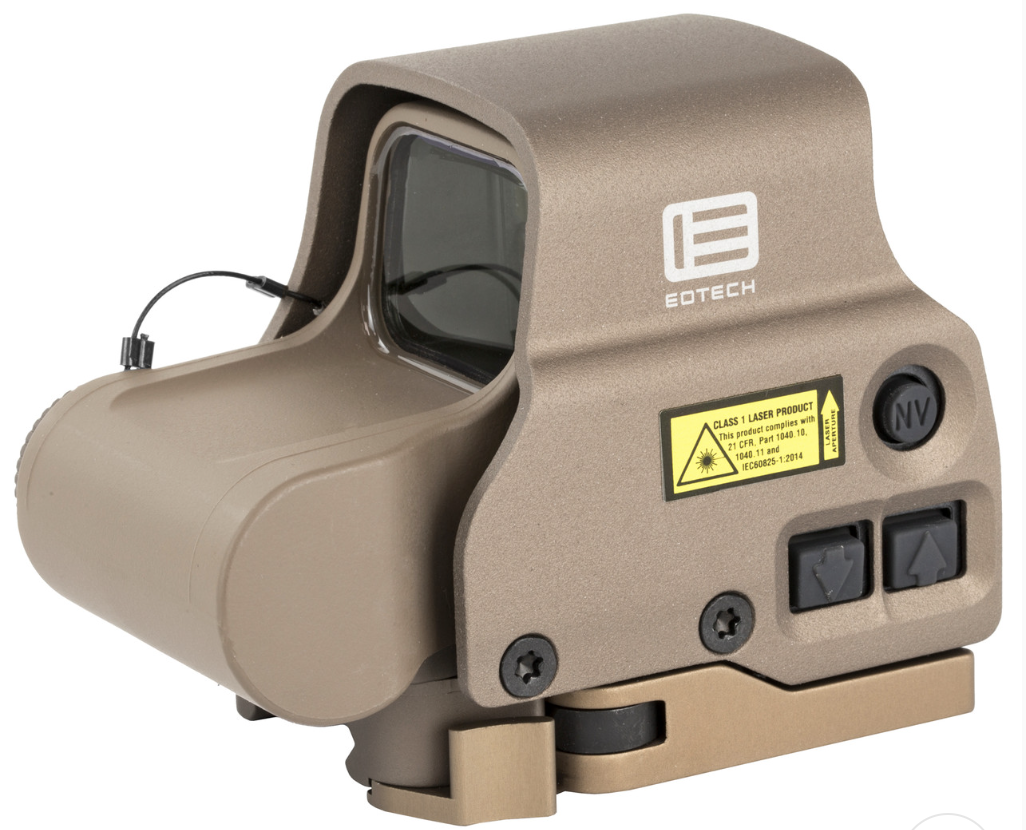

EOTECH EXPS3 – Built for Professional Use

The EXPS3 is widely considered the gold standard of EOTECH holographic sights. Designed for military, law enforcement, and serious civilian users, it’s optimized for low-light and night vision applications.

Key Features

Night Vision Compatible

The EXPS3 offers 20 daylight brightness settings plus 10 dedicated night vision (NV) settings. If you’re running helmet-mounted NODs or planning to in the future, this matters.

Lower 1/3 Co-Witness Height

The integrated 7mm riser gives you a lower 1/3 co-witness with standard AR-15 iron sights. Many shooters prefer this because:

• It keeps irons out of the main sight picture
• It offers a more heads-up shooting position
• It works seamlessly with magnifiers

Built-In Quick Detach Lever

The EXPS3 features a factory-installed QD lever mount. This allows for:

• Fast removal without tools
• Repeatable zero when reattached
• Easy swapping between rifles

EXPS3 Specifications

• Brightness Control: 20 daylight + 10 NV settings
• Battery: 1x CR123A (approx. 1,000 hours at medium setting)
• Mount: Integrated QD lever, 1” Weaver / MIL-STD-1913 rail
• Water Resistance: Submersible to 33 ft (10m)
• Operating Temp: -40°F to 140°F
• Adjustments: 0.5 MOA per click
• Weight: 11.2 oz
• Dimensions: 3.8" x 2.3" x 2.9"

Who Should Choose the EXPS3?

The EXPS3 is ideal if:

• You run night vision.
• You want a built-in QD mount.
• You prefer lower 1/3 co-witness.
• You need maximum water resistance.
• You’re building a duty or defensive rifle.

If your setup includes IR lasers, optic magnifiers, or helmet-mounted NV, the EXPS3 is the clear winner.

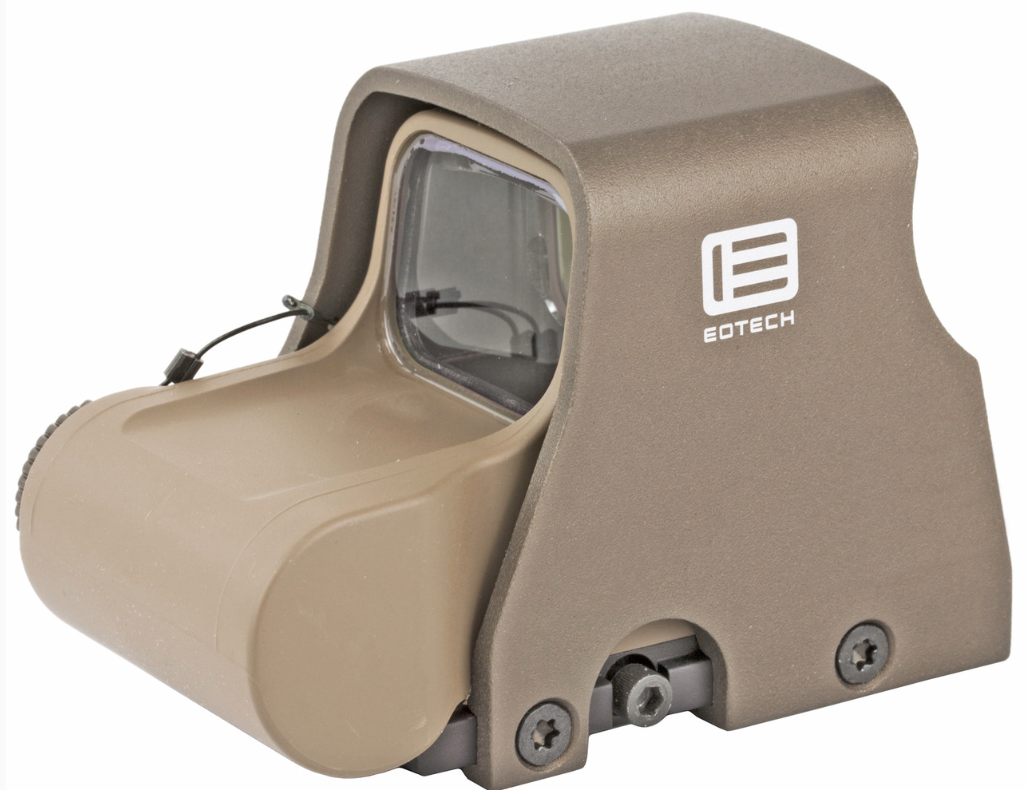

EOTECH XPS2 – Small Footprint, Full Capability

The XPS2 delivers the same holographic performance but in a lighter, more compact package. It’s the shortest and lightest HWS in the lineup.

Key Features

Compact Design

By using a single CR123 battery mounted crosswise, the XPS2 significantly reduces length. That means:

• More rail space
• Room for magnifiers or backup irons
• Cleaner builds

Daylight-Optimized

The XPS2 offers 20 daylight brightness settings but does not include night vision modes. For most civilian shooters, this isn’t a drawback.

Streamlined Mounting

Unlike the EXPS3, the XPS2 uses a standard bolt-on mount instead of a QD lever. It attaches to Weaver or MIL-STD-1913 rails securely but requires a tool for removal.

XPS2 Specifications

• Brightness Settings: 20 daylight levels
• Battery Life: Up to 1,000 hours (setting 12, room temp)
• Size: 3.8" x 2.1" x 2.5"
• Weight: 9 oz
• Mount: Standard Picatinny/Weaver rail
• Adjustment: 0.5 MOA per click
• Water Resistance: Submersible to 10 ft
• Operating Temp: -40°F to 140°F
• Made in the USA

Who Should Choose the XPS2?

The XPS2 makes sense if:

• You don’t use night vision.
• You want the lightest possible EOTECH option.
• Rail space is limited.
• You’re building a competition or range rifle.
• You prefer a lower upfront cost.

For daylight shooting, home defense, and general-purpose carbines, the XPS2 is more than capable.

Side-by-Side Comparison: EXPS3 vs XPS2

Performance Differences in Real-World Use

1. Mounting & Height

The biggest practical difference is mounting height. The EXPS3’s raised base gives a more upright shooting posture, which pairs well with:

• Body armor
• Night vision helmets
• Gas masks
• Modern high-ready shooting styles

The XPS2 sits slightly lower and may feel more traditional.

2. Night Vision Capability

If you don’t run NV, the extra 10 NV settings on the EXPS3 won’t benefit you. But if you ever plan to integrate night vision, the XPS2 simply won’t work.

This is the most important deciding factor.

3. Weight and Balance

The XPS2 saves about 2.2 ounces. That may not sound like much, but on lightweight builds, not necessarly an everyday carry but something like those that you keep with you everywhere (maybe in your truck or backpack), every ounce counts.

If you're building a minimalist AR or PCC, the XPS2 keeps things lean.

4. Water Resistance

The EXPS3 is rated to 33 feet, while the XPS2 is rated to 10 feet. For most civilian users, 10 feet is more than enough. But professionals operating in harsh environments may prefer the added protection.

Magnifier Compatibility

Both optics pair well with EOTECH magnifiers. Because the EXPS3 sits at lower 1/3 height out of the box, it often aligns perfectly with flip-to-side magnifier mounts designed for that standard.

The XPS2 may require careful mount selection depending on your preferred co-witness height.

Which One Is Better for Home Defense?

If you’re building a home defense rifle:

• The XPS2 is fully capable.
• The EXPS3 adds durability and future-proofing.

Unless you're running night vision, the XPS2 covers all practical needs for most homeowners.

Which One Is Better for Duty or Tactical Use?

For professional users:

• Night vision compatibility alone makes the EXPS3 the better option.
• The QD mount adds versatility.
• Higher water resistance adds peace of mind.

This is why many serious users default to the EXPS3.

Final Verdict: EXPS3 vs XPS2

Both optics are proven, rugged, and fast. The choice comes down to intended use.

Choose the EXPS3 if:

• You run or plan to run night vision.
• You want a built-in QD mount.
• You prefer lower 1/3 co-witness.
• You want maximum durability.

Choose the XPS2 if:

• You shoot primarily in daylight.
• You want a lighter, more compact setup.
• You don’t need NV compatibility.
• You want to save weight and cost.

At the end of the day, both sights deliver the speed and clarity that made EOTECH holographic optics famous for everyone from law enforcement to civilian usage. The question isn’t which one is good—it’s which one fits your mission.

If you’re building with future upgrades in mind, the EXPS3 gives you more flexibility. If you’re keeping it simple and streamlined, the XPS2 delivers everything you need without extra features you may never use.
